Caps & Closures · Spec sheet IT-CA-106
Child-Resistant Cap R-53
Child-Resistant Cap R-53 in Polypropylene with R-53 neck finish · 1200 pieces per box. Technical data sheet controlled under ISO 22000.

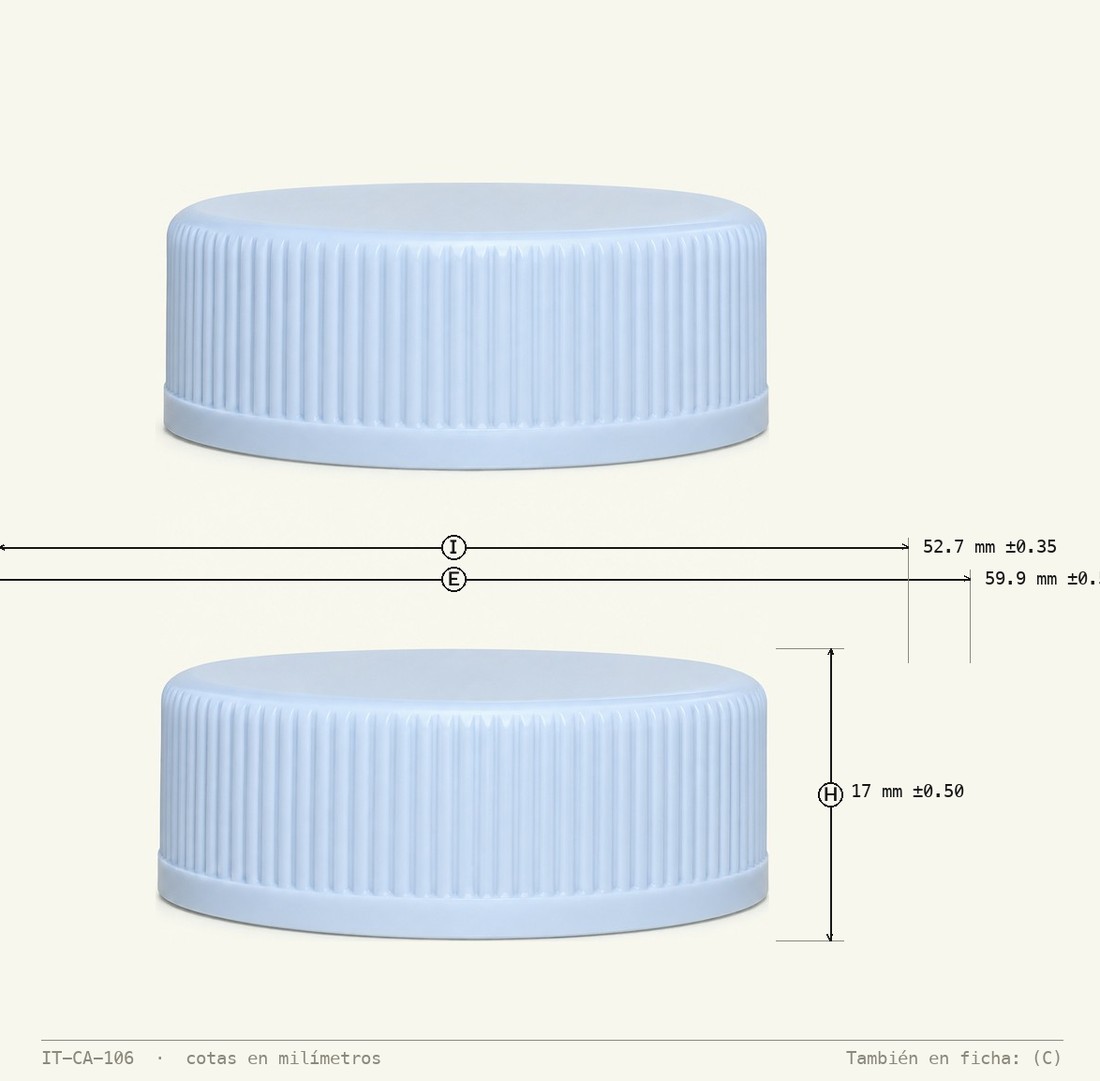

Measurements and tolerances
Spec sheet IT-CA-106 · Rev. 0| Dimension | Measurement and tolerance |
|---|---|
| HHeight | 17 mm±0.50 |
| EOuter Ø | 59.9 mm±0.50 |
| IInner Ø (no thread) | 52.7 mm±0.35 |
Wall thickness
| CInner Ø (with thread) | 50.3 mm±0.50 |
These are process-control measurements, not selection ones: they define how the piece is blown. They come in full on the downloadable data sheet.
Packaging and shipping
How it goes on the pallet
| Layers per pallet | none |
How it is packed. Box. The packaging weighs 100 g per bag and 880 g for the box with one bag. Bag size 63 x 26 x 140 cm.
Colors
The most requested on this piece- Blue
- White
- Black
- Red
- Green
- Yellow
The circles indicate the color, not a photo of the piece in that color. It is pigmented to the Pantone you request: these are the most commonly used and the list doesn’t end here. To approve a shade you must request a physical sample.
It is released against this data sheet, with acceptance criteria by defect class. How it is inspected · Download the full technical data sheet
